LACONWAP GREEN ENERGY
18 MW Hydroelectric Cascade
Elevating Philippine clean energy with Laconwap Green Energy Inc.'s 18.0 MW run-of-river cascade hydroelectric portfolio and USD $35M staged equity investment facility.
Laconwap Green Energy Inc. master development roadmap across the Laconwap River basin. Phase 1 (8.0 MW) represents the active pre-construction stage, followed by Phase 2 (6.0 MW) and Phase 3 (4.0 MW) cascade expansions.
Active flagship project with completed Pre-Feasibility Study, approved DOE Service Contract SC-2020-04-0013, and secured $35M investment facility.
Second stage cascade expansion utilizing the contiguous hydraulic head and river gradient along the Laconwap river valley.
Final phase completing the 18.0 MW basin-wide master plan, maximizing energy capture and regional grid reliability in Northern Luzon.
Key milestones achieved as of December 2025 across technical, legal, and financial domains for the 8.0 MW Phase 1 (Laconwap 3 MHPP).

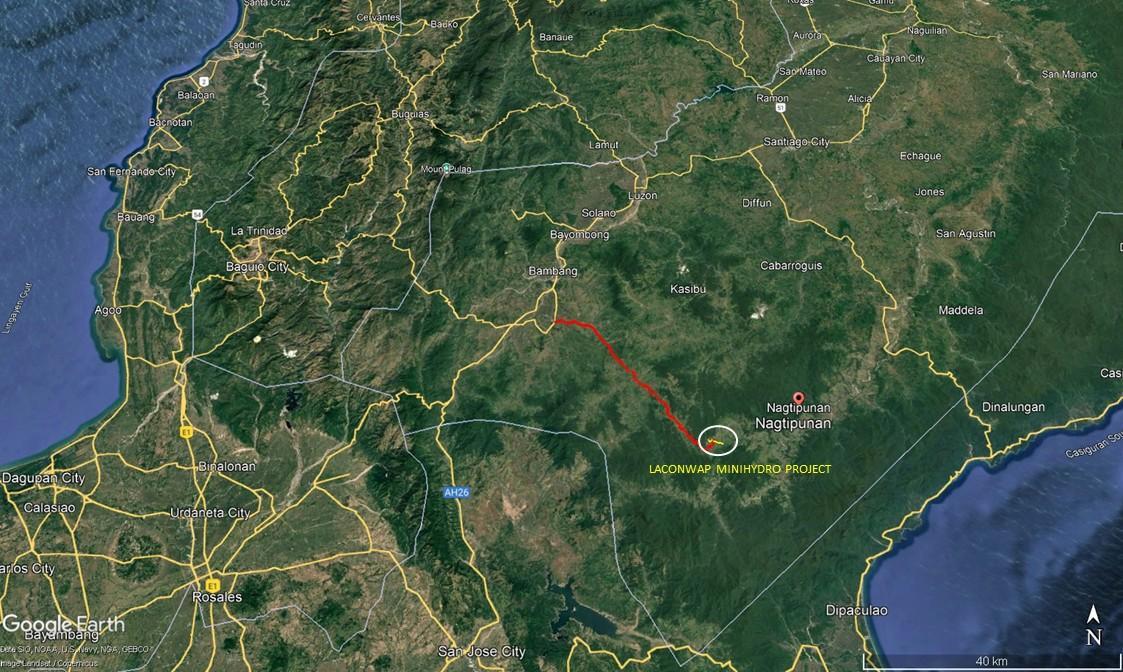

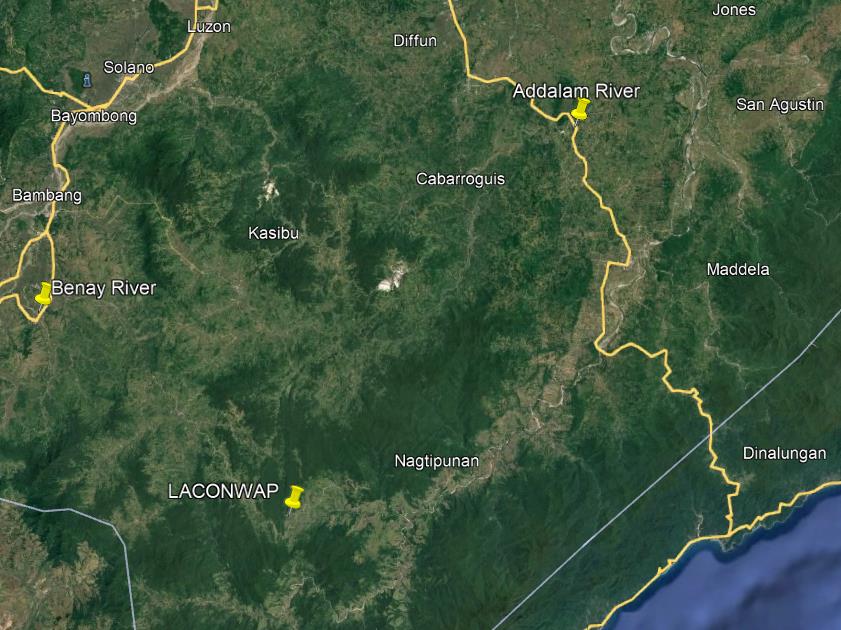

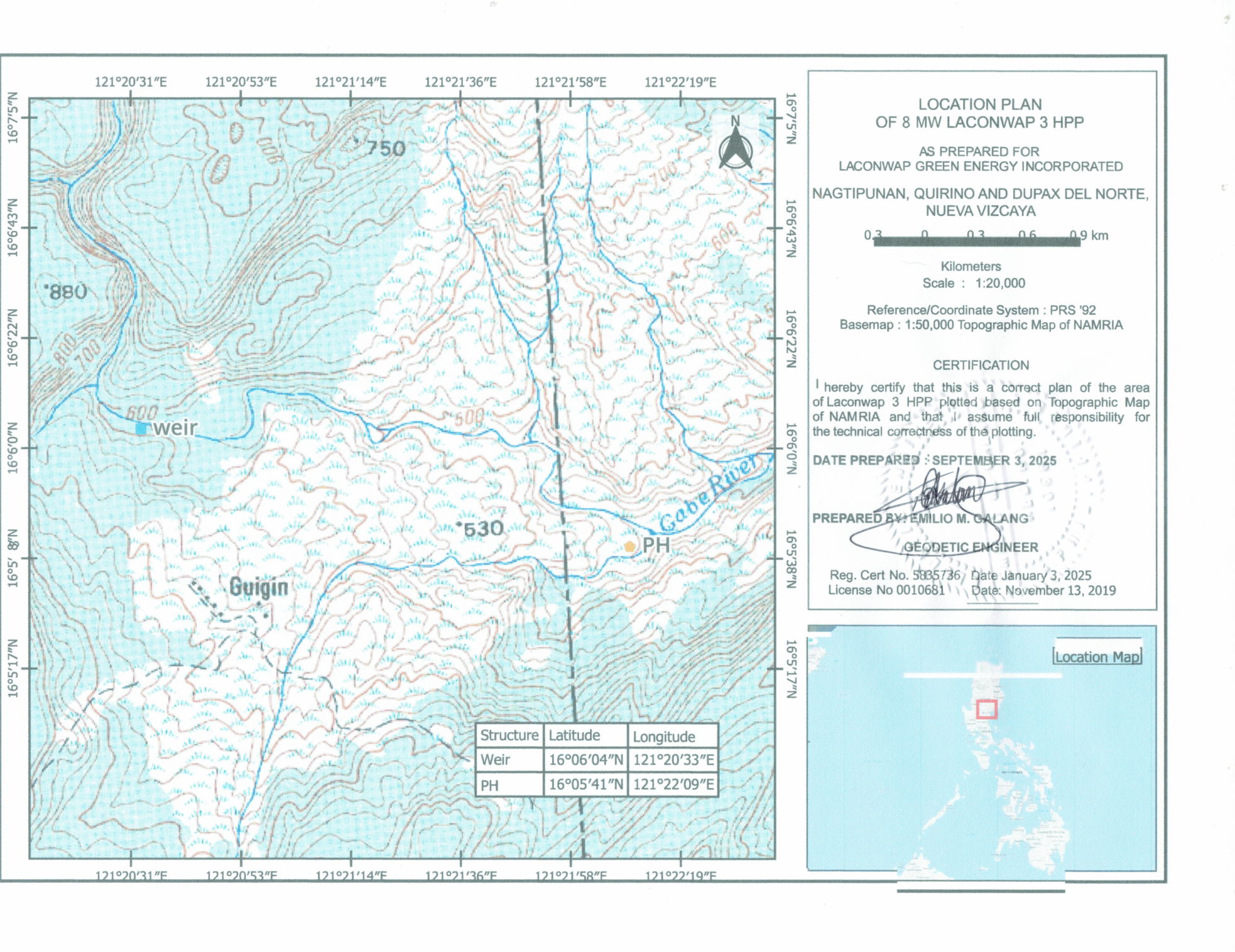

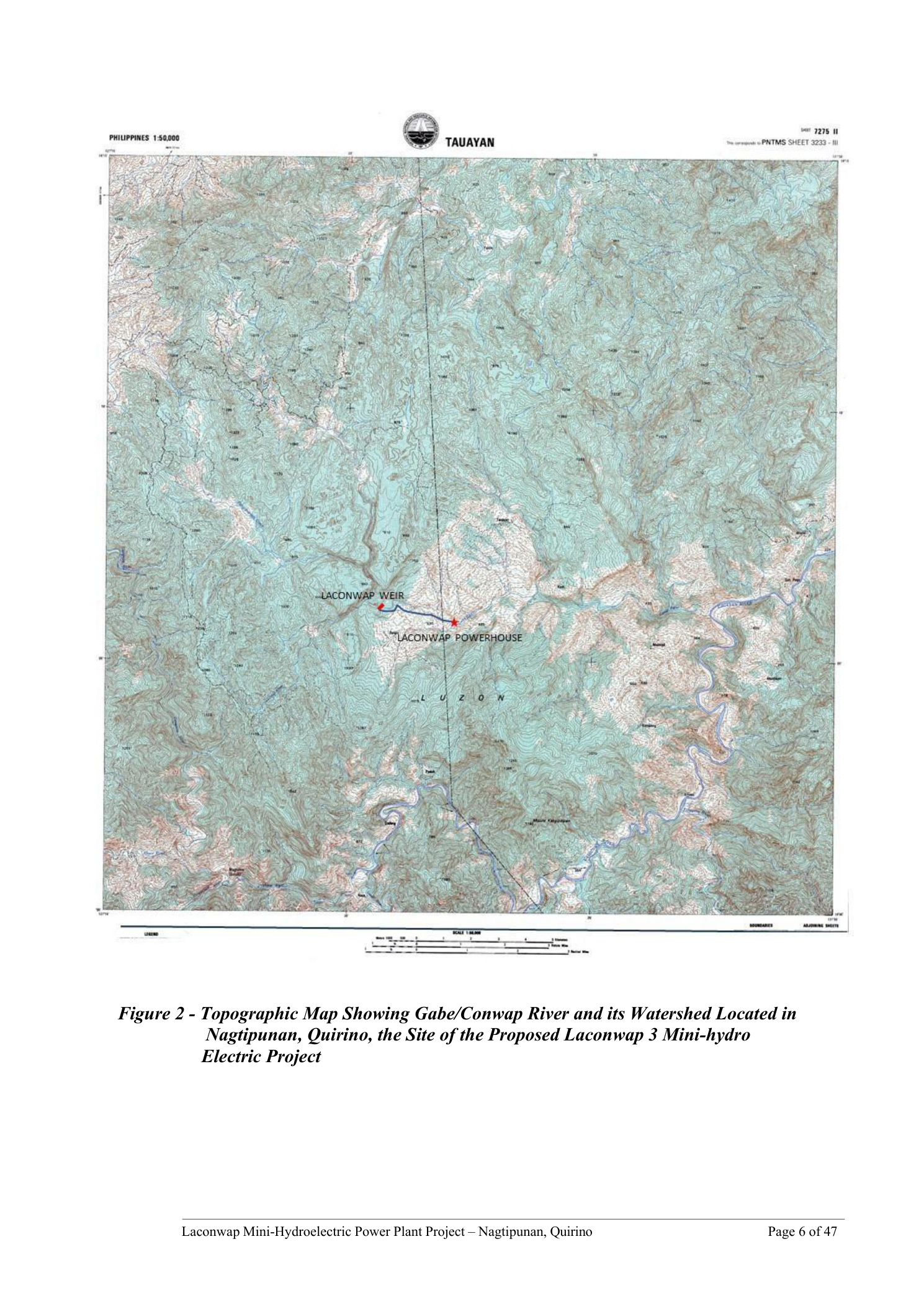

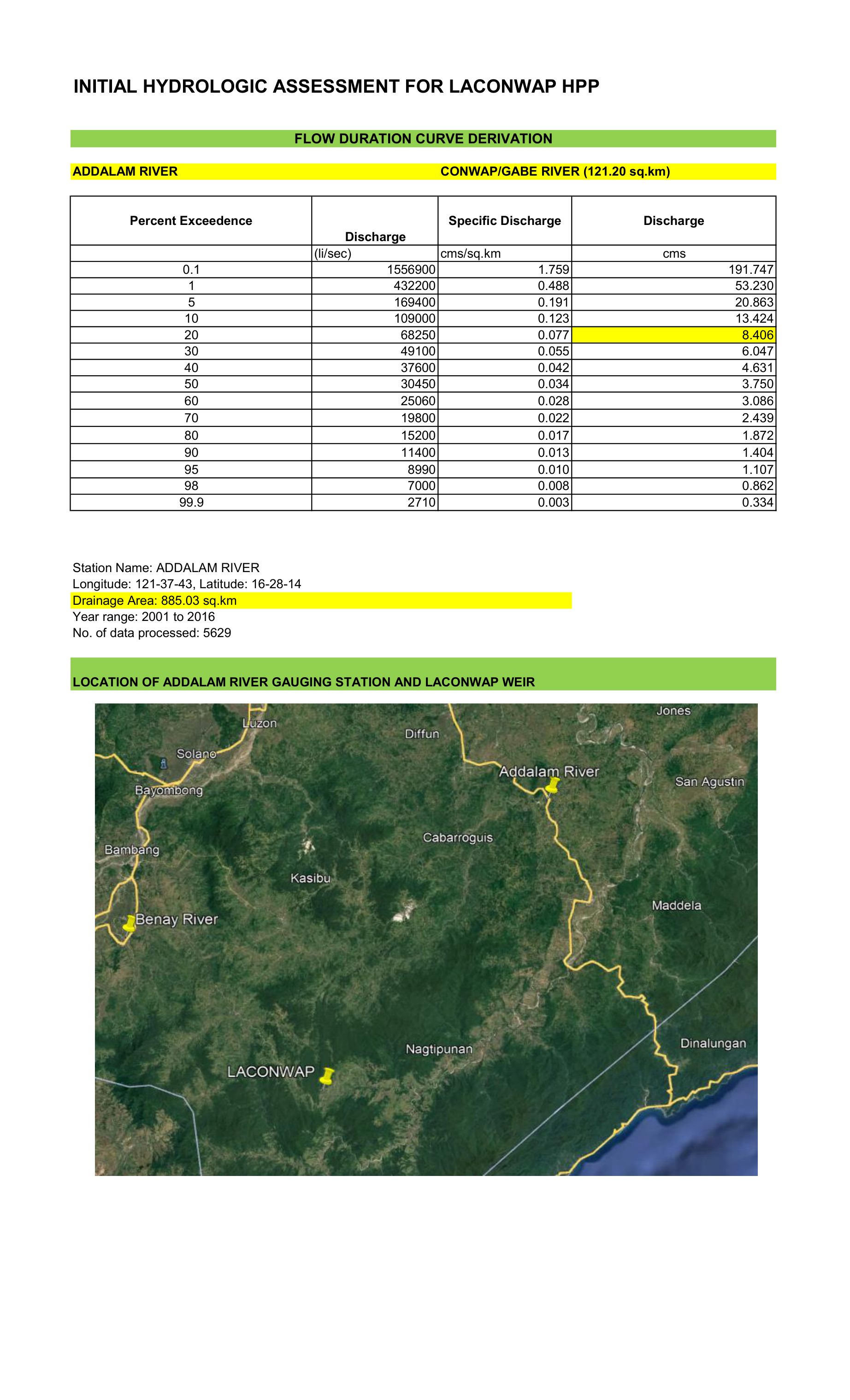

Navigate through satellite imagery, official DOE surveys, watershed analysis and engineering plans of the 8 MW facility.

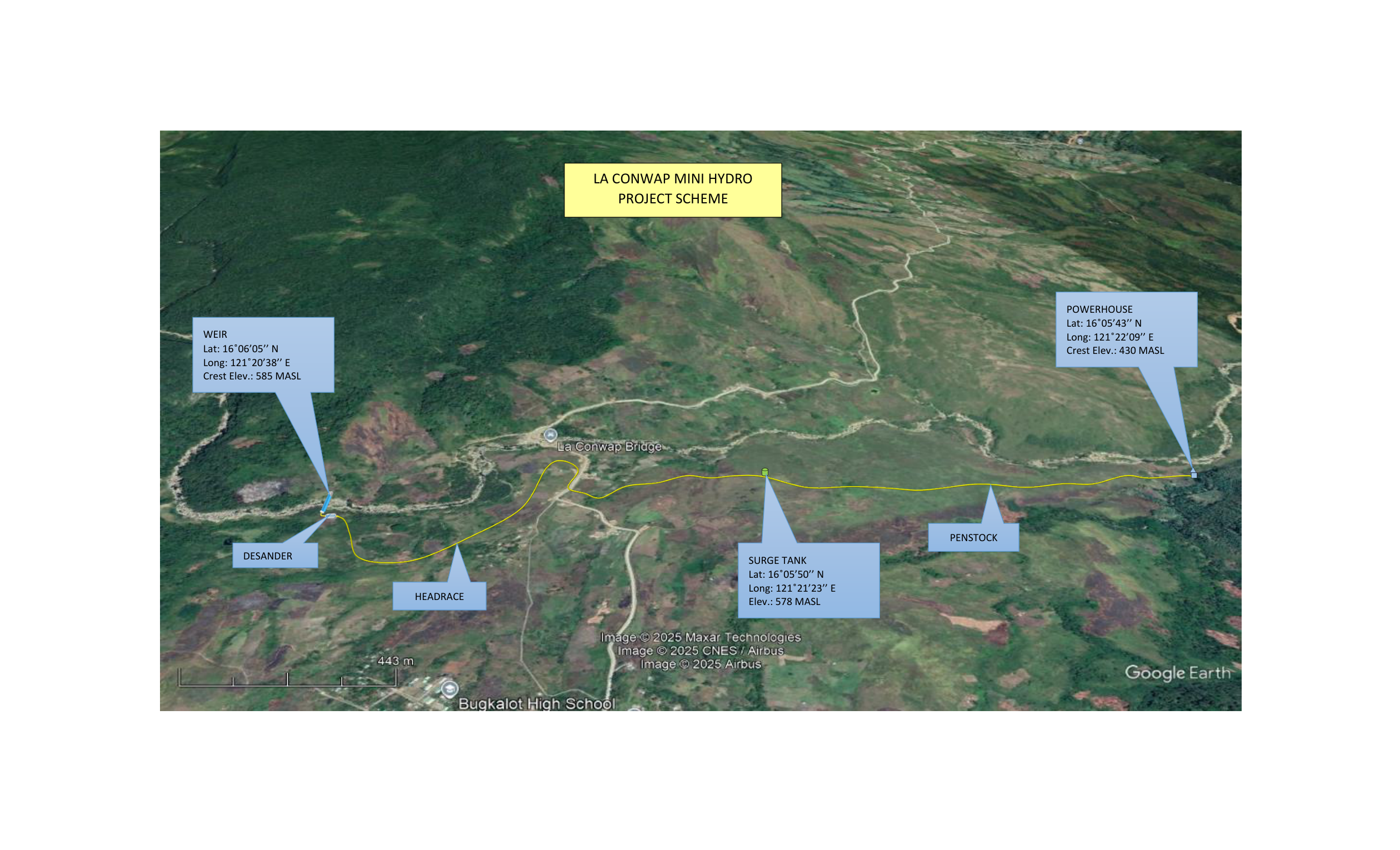

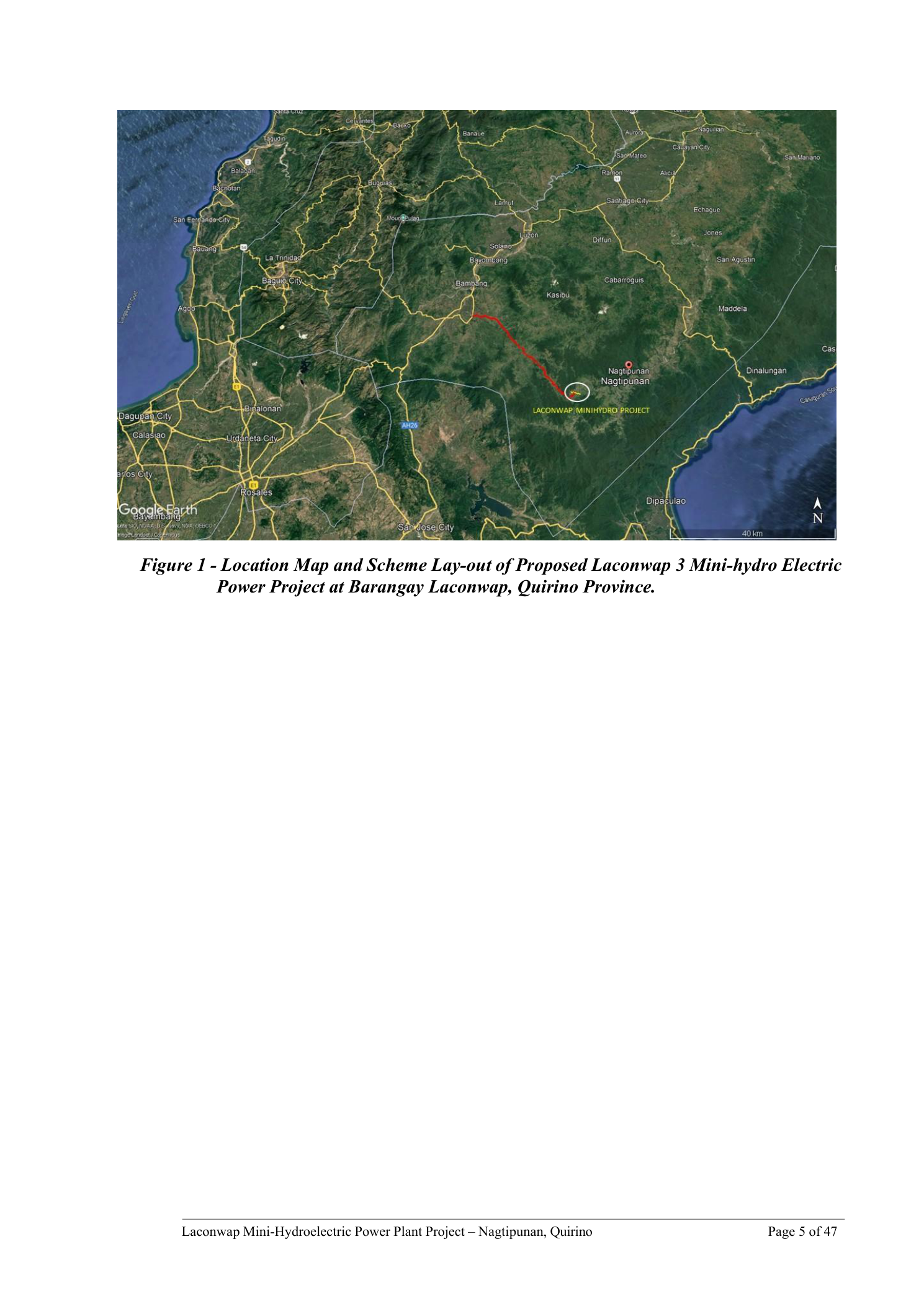

Aerial view of the Laconwap 3 scheme showing the intake dam at elevation 600m ASL, the 2.7 km penstock alignment following river contours, and the powerhouse at 445m ASL in Nagtipunan, Quirino.

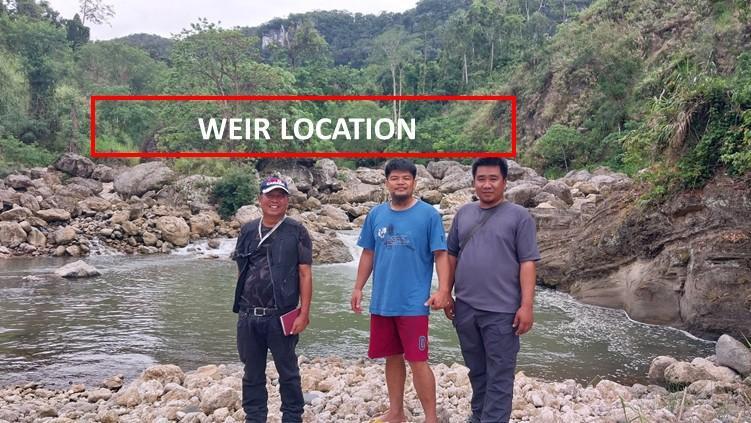

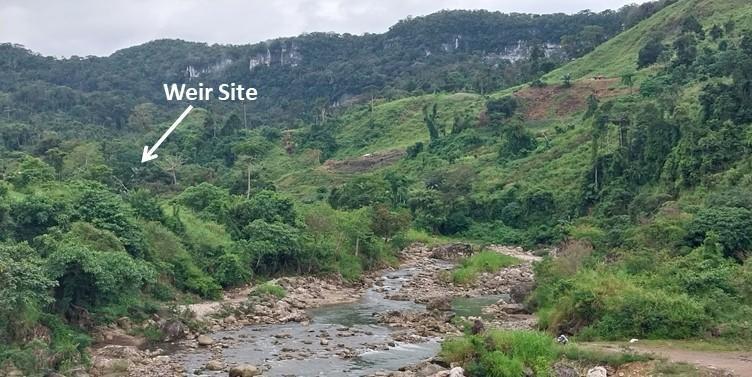

River water is diverted at 600m ASL through a weir dam and headrace channel into the penstock system.
Water flows through a 2.7 km steel penstock, gaining kinetic energy as it drops 155m in elevation.
High-pressure water spins twin Francis turbines at 750 RPM, driving generators producing 8 MW of clean electricity.
Electricity is stepped up to 69 kV and fed into the Luzon grid via a dedicated transmission line to power Northern Luzon.
Detailed engineering parameters from the Pre-Feasibility Study with an interactive power output calculator.
| Project Name | Laconwap 3 MHPP |
| Rated Capacity | 8.0 MW |
| Turbine Type | Francis (Horizontal) |
| Number of Units | 2 ร 4 MW |
| Gross Head | 155 m |
| Net Head | 148 m |
| Design Flow (Q) | 7.0 mยณ/s |
| Penstock Length | 2,700 m |
| Penstock Diameter | 1.2 m |
| Turbine Efficiency | 92 % |
| Generator Efficiency | 95 % |
| Transformer Efficiency | 97.2 % |
| Catchment Area | 67 kmยฒ |
| Annual Energy Output | 38.5 GWh |
Adjust flow rate and head to simulate power generation for the Laconwap 3 MHPP.
P = (7.0 ร 148 ร 9.81 ร 0.8496) / 1000

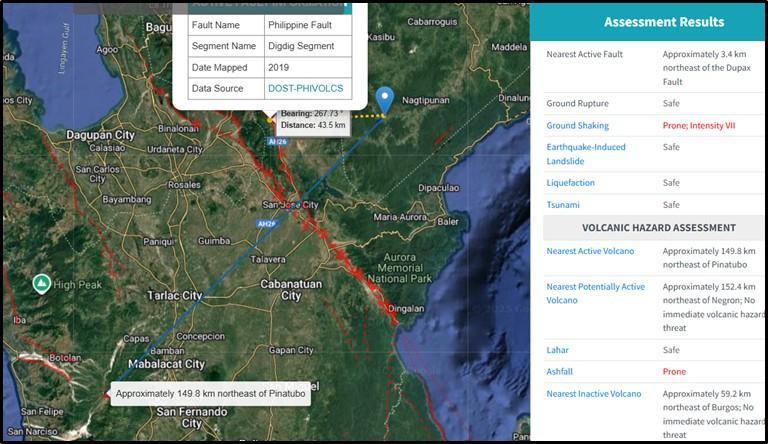

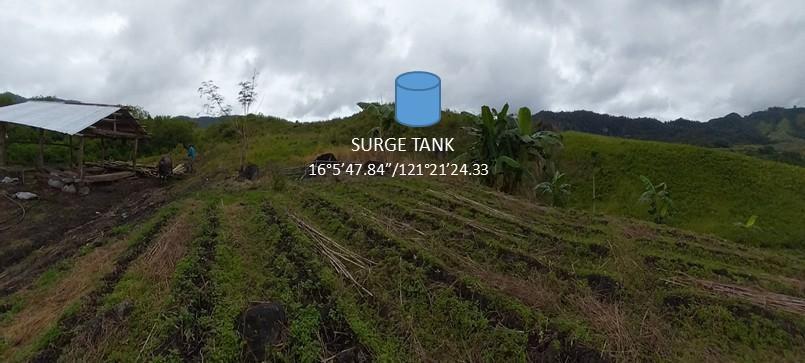

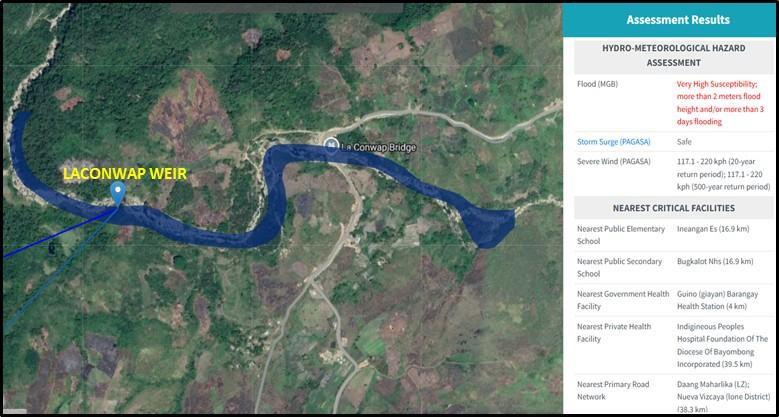

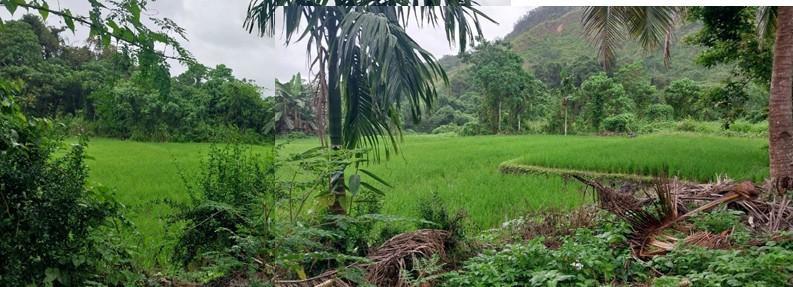

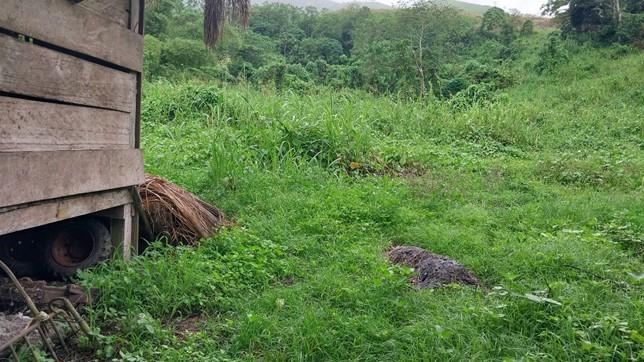

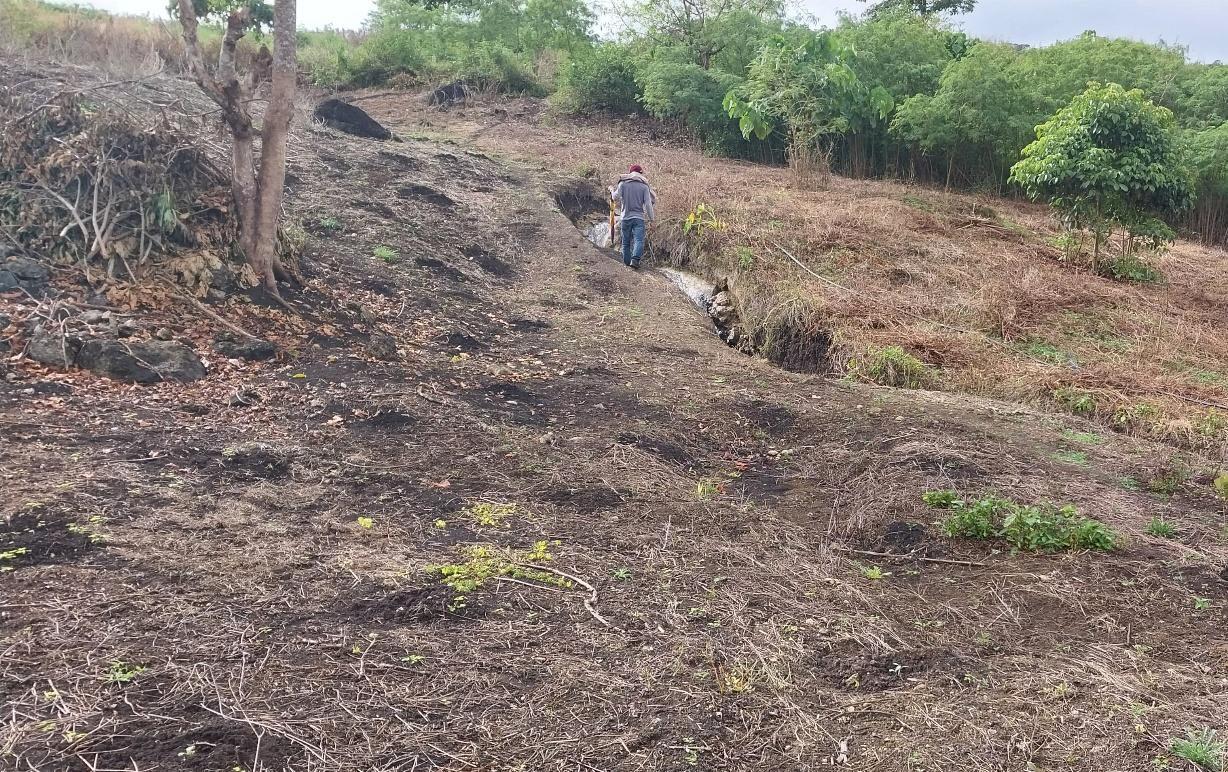

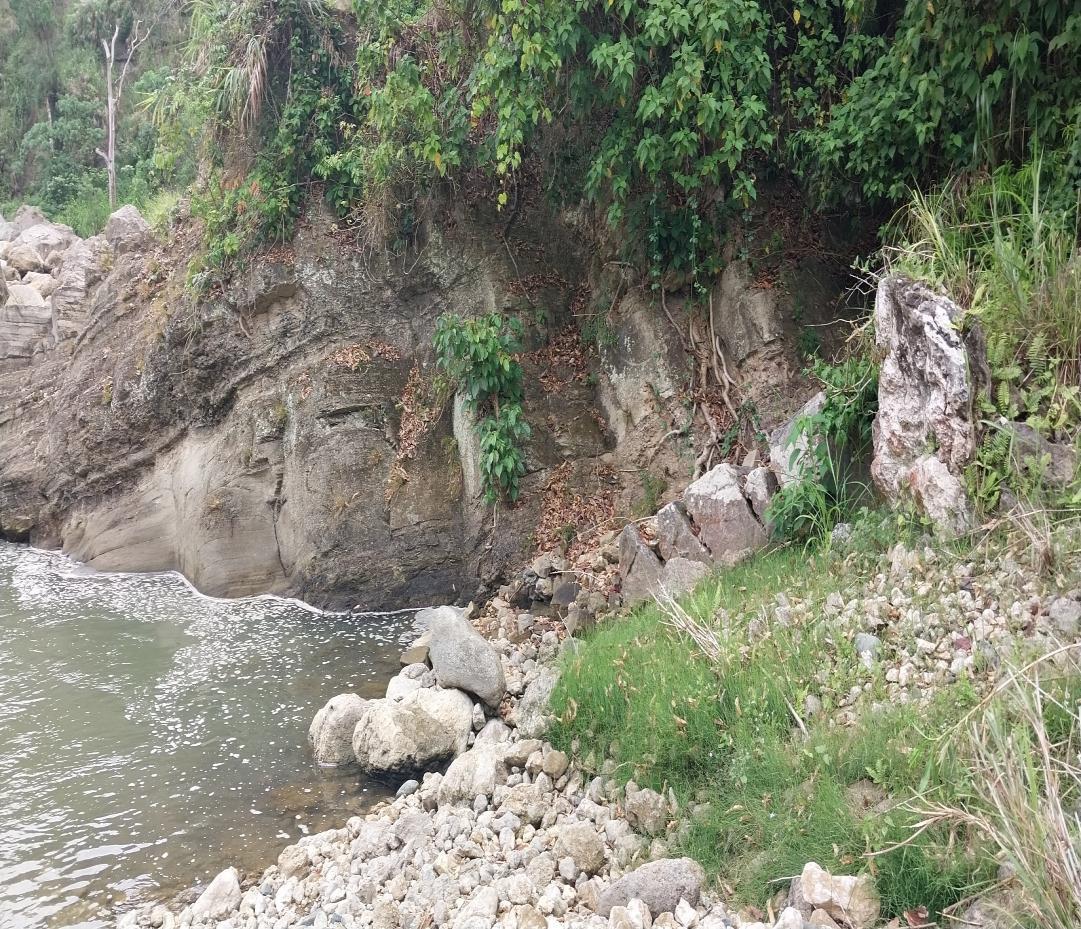

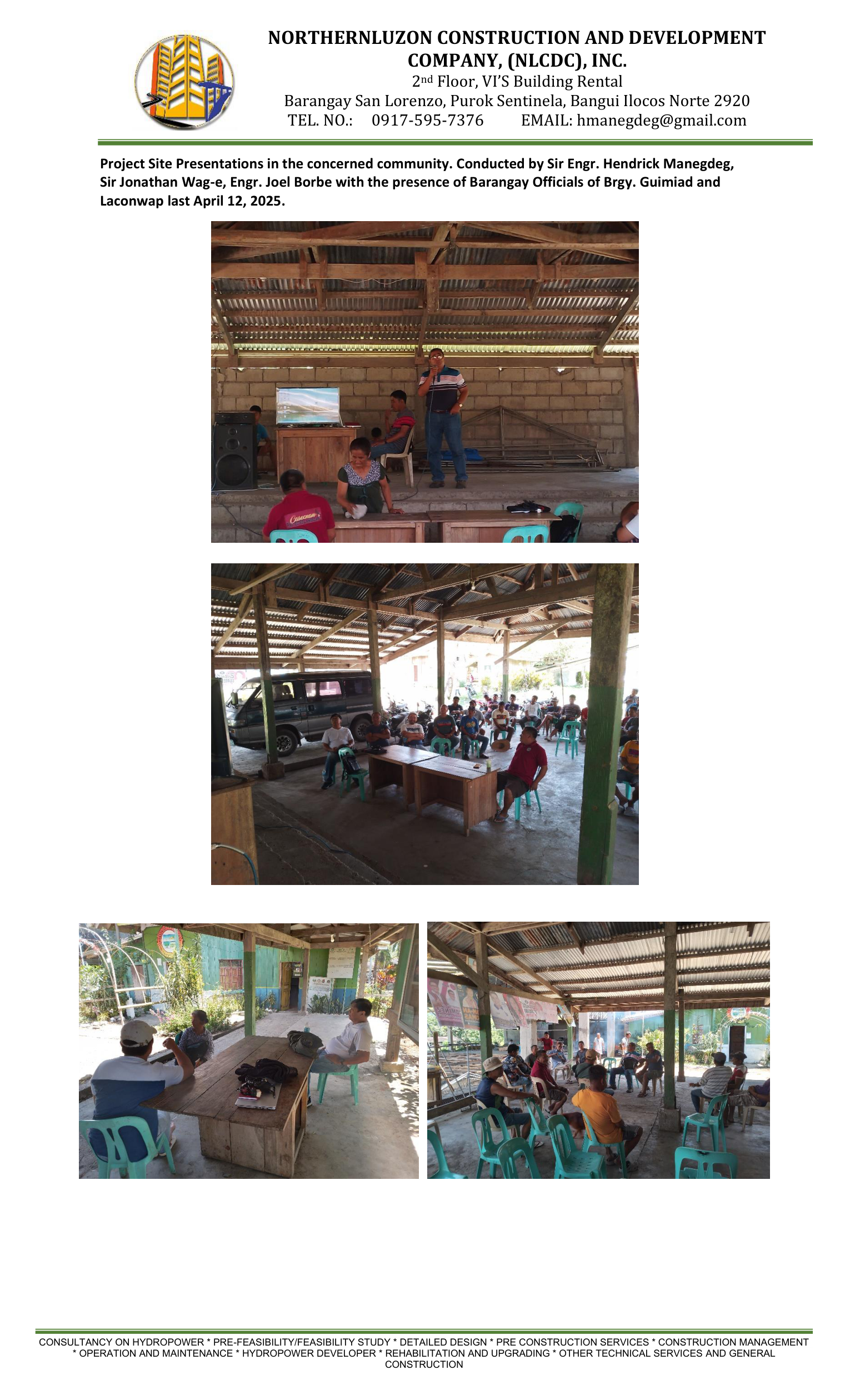

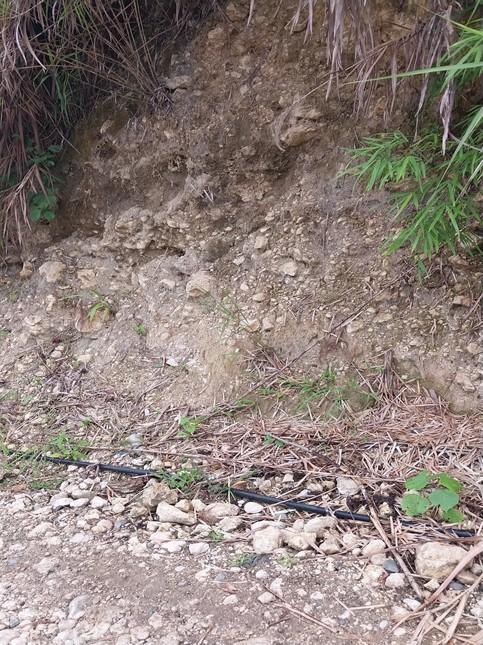

Field photographs from geological surveys, community consultations, and project area reconnaissance.

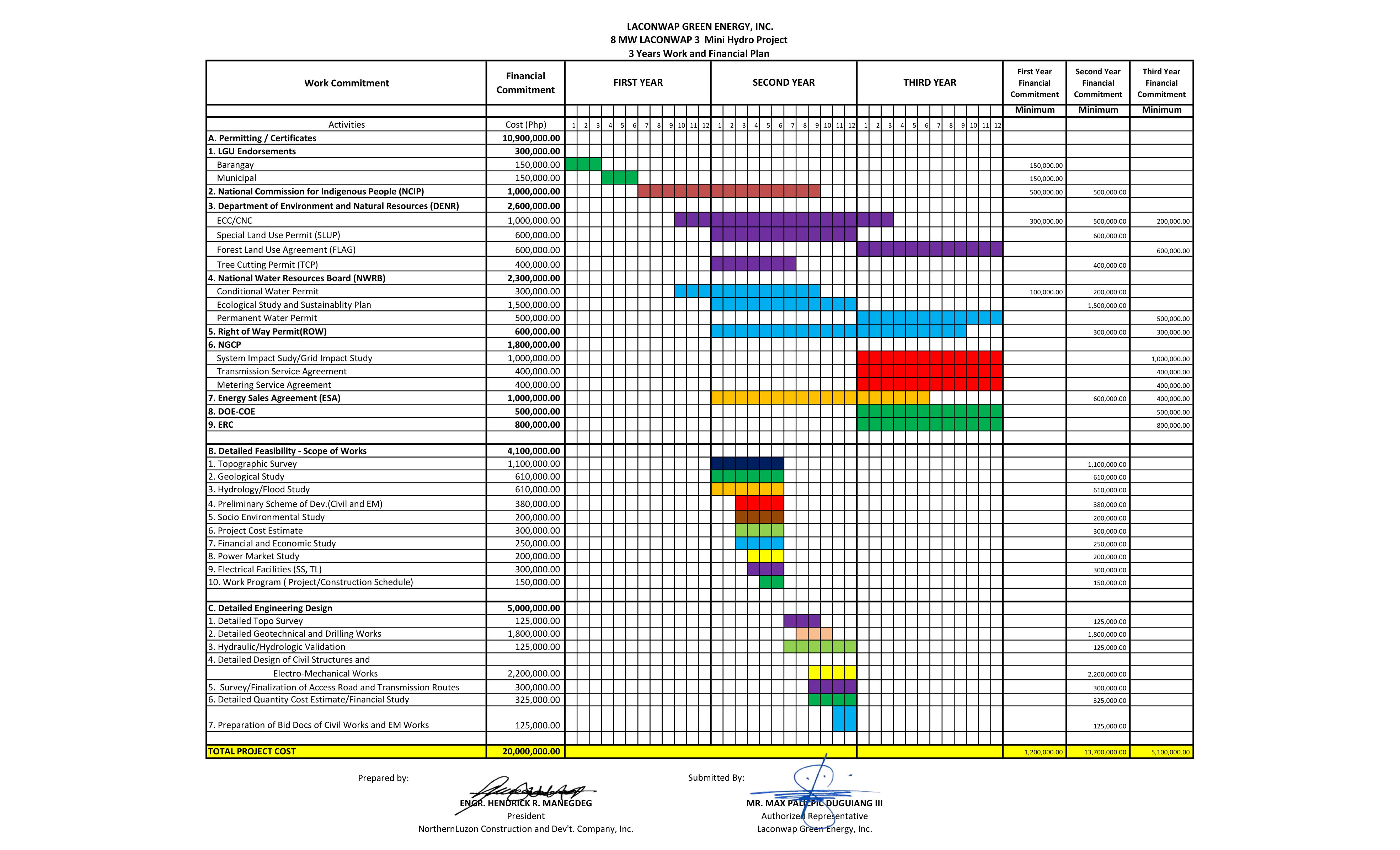

โฑ20M pre-construction work plan with USD $35M equity investment facility structured in 5 tranches through Silicon Valley Global PH.
| Activity | Cost (โฑ) |
|---|---|
| Updated Topographic Survey (LIDAR) | 1,800,000 |
| Geotechnical Drilling & Analysis | 1,200,000 |
| Updated Hydrology Study | 800,000 |
| EIS / ECC Application | 1,500,000 |
| NCIP CP Processing | 500,000 |
| Project Management Office | 350,000 |
| Activity | Cost (โฑ) |
|---|---|
| Detailed Engineering Design (DED) | 3,500,000 |
| Electromechanical Design | 1,200,000 |
| Transmission Line Design | 800,000 |
| Financial Modeling & PPA Negotiation | 1,000,000 |
| Legal & Regulatory Compliance | 1,000,000 |
| Administrative & Contingency | 800,000 |
| Activity | Cost (โฑ) |
|---|---|
| EPC Contractor Procurement | 1,500,000 |
| Access Road & Site Preparation | 1,500,000 |
| Community Development Fund | 800,000 |
| Equipment Deposits & Procurement | 1,000,000 |
| Final Contingency & Reserves | 750,000 |
Equity Investment Agreement providing staged capital deployment across 5 tranches, managed through Land Bank of the Philippines.
A multi-stakeholder partnership combining indigenous community leadership, engineering expertise, and international investment.
Northern Luzon Construction & Development Co. โ Engineering, Procurement & Construction partner with regional expertise.
Silicon Valley Global Philippines โ USD $35M equity investment facility providing staged capital deployment for the project.
Land Bank of the Philippines โ Government financial institution managing the Relationship Manager Account (RMA) for fund administration.
Department of Energy โ Awarded Service Contract SC-2020-04-0013 for the development and operation of the 8 MW facility.

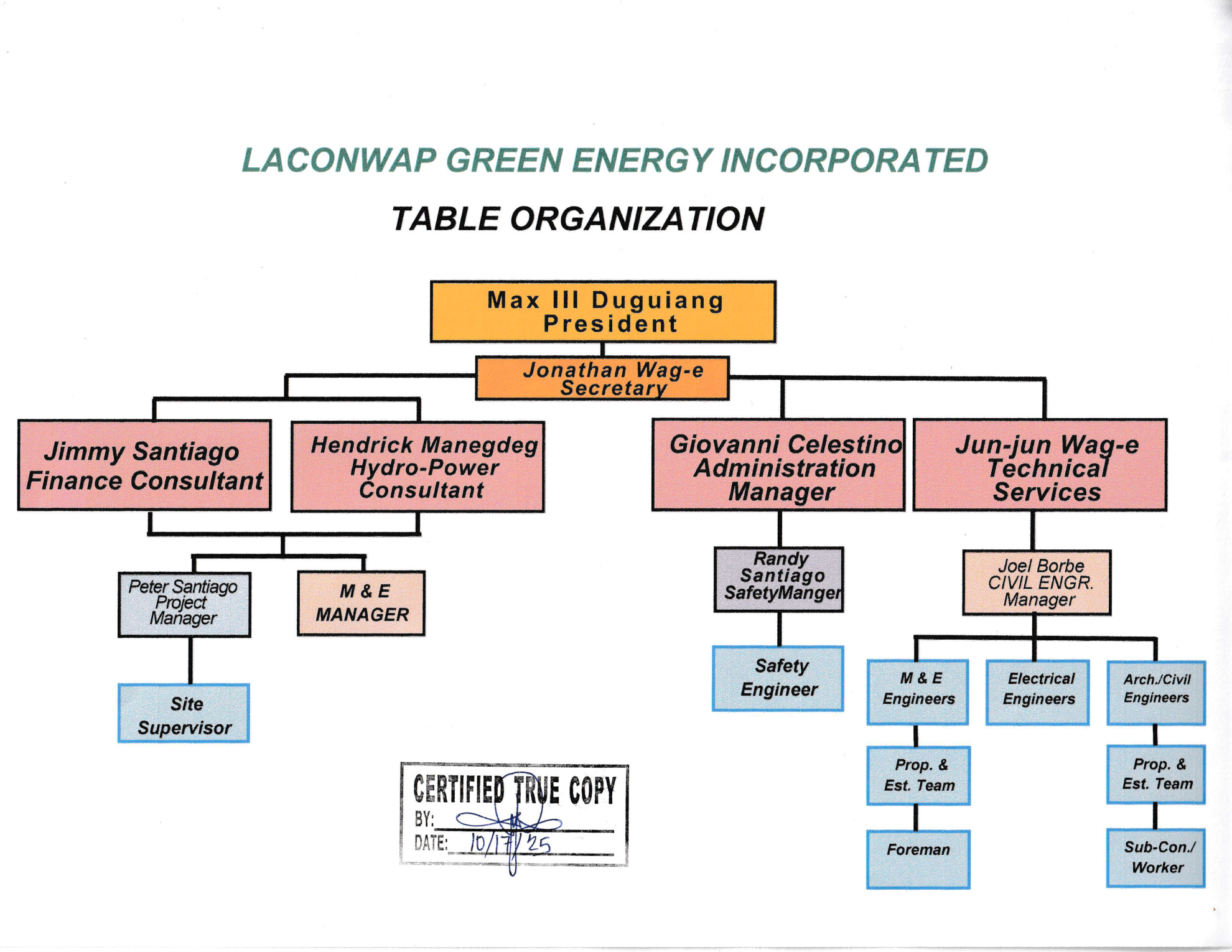

Corporate governance, international investment oversight, engineering leadership, and indigenous community stewardship for the 18 MW Laconwap River Cascade Hydroelectric Program.
SVG PH
SVG PH
LGEI
LGEI โข Mountain Province
SVG PH
SVG PH
SVG PH
LGEI โข Pampanga
LGEI โข Benguet
LGEI โข Baguio City
Indigenous Peoples / LGEI
LGEI โข Benguet
LGEI โข Baguio City

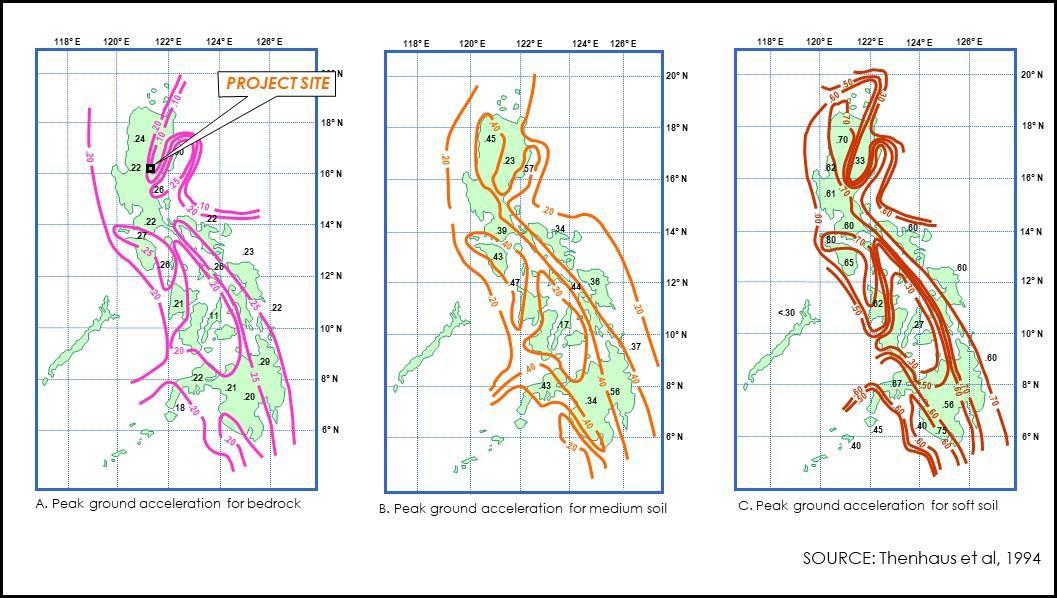

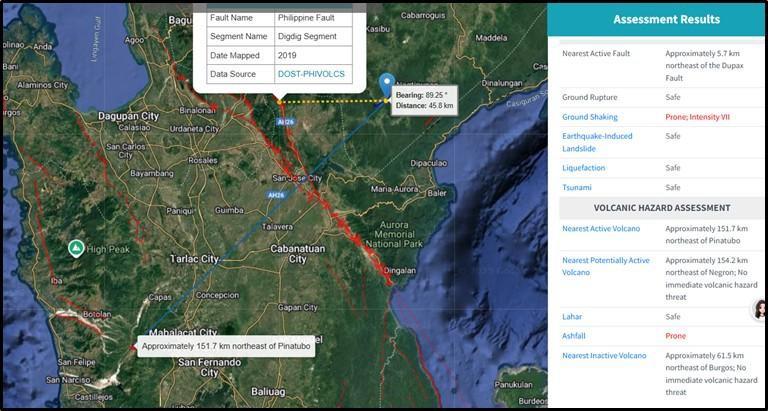

Comprehensive report covering technical PFS, geological assessment, DOE service contracts, and financial plans.
Relationship Manager Account request for institutional administration of the USD $35M investment facility fund flows.
Silicon Valley Global Philippines equity investment facility defining the staged 5-tranche capital drawdown framework.
Interested in the Laconwap 3 Mini-Hydro Power Project? Reach out for investment inquiries, partnership opportunities, or technical information.
Registered under SEC CS202060596 as a renewable energy project developer focused on run-of-river hydroelectric power in Northern Luzon, Philippines.
